Diamond Wet Core Bit For Europe Market

Short Description:

Mainly used for drilling concrete, reinforced concrete, brick, block etc.
Fast, smoothly and long life.
Segment on the core bits can be Normal type, Turbo Type, Roof type, Mesh type and Shark type. The length and thread can be provided upon request.
Machinery: Hand held drill, drilling machine.Wet use.


Product Detail

Product Tags

Application:
Mainly used for drilling concrete, reinforced concrete, brick, block etc.
Fast, smoothly and long life.

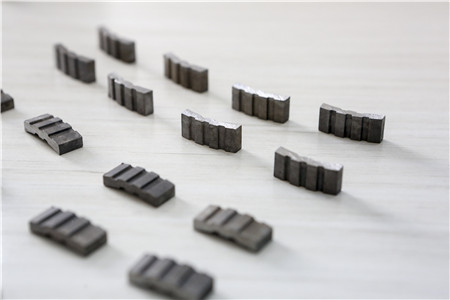

P09A0433

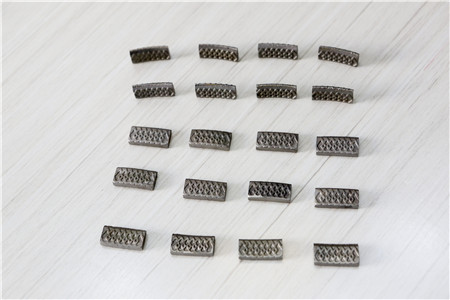

P09A0408

Segment on the core bits can be Normal type, Turbo type,Roof type, Mesh type and Shark type. The length and thread can be provided upon.

Item No.

Diameter

Effective Length

Segments

Segments Qty.

Thread

KEENW012

12mm

450mm

ring

1 1/4"-7UNC

KEENW014

14mm

450mm

ring

1 1/4"-7UNC

KEENW016

16mm

450mm

ring

1 1/4"-7UNC

KEENW018

18mm

450mm

ring

1 1/4"-7UNC

KEENW020

20mm

450mm

ring

1 1/4"-7UNC

KEENW022

22mm

450mm

ring

1 1/4"-7UNC

KEENW024

24mm

450mm

ring

1 1/4"-7UNC

KEENW025

25mm

450mm

ring

1 1/4"-7UNC

KEENW028

28mm

450mm

ring

1 1/4"-7UNC

KEENW030

30mm

450mm

ring

1 1/4"-7UNC

KEENW032

32mm

450mm

ring

1 1/4"-7UNC

KEENW035

35mm

450mm

ring

1 1/4"-7UNC

KEENW038

38mm

450mm

ring

1 1/4"-7UNC

KEENW042

42mm

450mm

ring

1 1/4"-7UNC

KEENW045

45mm

450mm

ring

1 1/4"-7UNC

KEENW052

52mm

450mm

24 x 3.5 x 10

5

1 1/4"-7UNC

KEENW057

57mm

450mm

24 x 3.5 x 10

5

1 1/4"-7UNC

KEENW062

62mm

450mm

24 x 3.5 x 10

6

1 1/4"-7UNC

KEENW067

67mm

450mm

24 x 3.5 x 10

6

1 1/4"-7UNC

KEENW072

72mm

450mm

24 x 3.5 x 10

7

1 1/4"-7UNC

KEENW077

77mm

450mm

24 x 3.5 x 10

7

1 1/4"-7UNC

KEENW082

82mm

450mm

24 x 3.5 x 10

8

1 1/4"-7UNC

KEENW092

92mm

450mm

24 x 3.5 x 10

8

1 1/4"-7UNC

KEENW102

102mm

450mm

24 x 3.5 x 10

9

1 1/4"-7UNC

KEENW107

107mm

450mm

24 x 3.5 x 10

9

1 1/4"-7UNC

KEENW112

112mm

450mm

24 x 3.5 x 10

10

1 1/4"-7UNC

KEENW117

117mm

450mm

24 x 3.5 x 10

10

1 1/4"-7UNC

KEENW122

122mm

450mm

24 x 3.5 x 10

10

1 1/4"-7UNC

KEENW127

127mm

450mm

24 x 3.5 x 10

10

1 1/4"-7UNC

KEENW132

132mm

450mm

24 x 3.5 x 10

11

1 1/4"-7UNC

KEENW142

142mm

450mm

24 x 3.5 x 10

11

1 1/4"-7UNC

KEENW152

152mm

450mm

24 x 4.0 x 10

12

1 1/4"-7UNC

KEENW162

162mm

450mm

24 x 4.0 x 10

12

1 1/4"-7UNC

KEENW172

172mm

450mm

24 x 4.0 x 10

13

1 1/4"-7UNC

KEENW182

182mm

450mm

24 x 4.0 x 10

13

1 1/4"-7UNC

KEENW200

200mm

450mm

24 x 4.0 x 10

15

1 1/4"-7UNC

KEENW225

225mm

450mm

24 x 4.0 x 10

16

1 1/4"-7UNC

KEENW250

250mm

450mm

24 x 4.0 x 10

17

1 1/4"-7UNC

KEENW300

300mm

450mm

24 x 4.5 x 10

21

1 1/4"-7UNC

KEENW350

350mm

450mm

24 x 4.5 x 10

23

1 1/4"-7UNC

KEENW400

400mm

450mm

24 x 4.5 x 10

25

1 1/4"-7UNC
